JY-DCF Dynamic crossflow filter

The JY-DCF Dynamic crossflow filter is a very effective enhanced membrane separation technology. The membrane flux decays slowly, is less affected by the concentration of the feed liquid, and the continuous and stable filtration time is long. The dynamic membrane has low energy consumption, and the power consumption is one third of that of the tubular membrane. The use of dynamic filtration can effectively prevent the clogging of the filter membrane and maintain the normal process of filtration. It is very suitable for the concentration and filtration of high-concentration materials and high-solid content materials.

Contact now

Consultation telephone +8613889310698

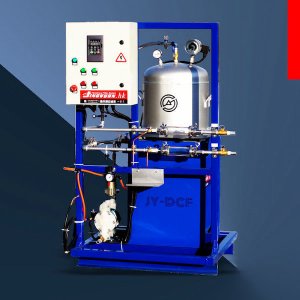

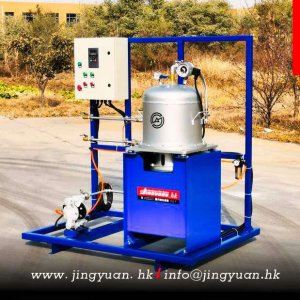

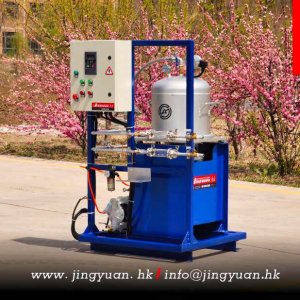

JY-DCF Dynamic crossflow filter/Revolutionary rotary crossflow filter

The JY-DCF Dynamic crossflow filter is a very effective enhanced membrane separation technology. The membrane flux decays slowly, is less affected by the concentration of the feed liquid, and the continuous and stable filtration time is long. The dynamic membrane has low energy consumption, and the power consumption is one third of that of the tubular membrane. The use of dynamic filtration can effectively prevent the clogging of the filter membrane and maintain the normal process of filtration. It is very suitable for the concentration and filtration of high-concentration materials and high-solid content materials.

Technical specifications:

Model:JY-DCF7
Processing capacity:200~500L /h
Membrane filter element:dynamic membrane (polymer material, produced by jingyuan^{^®} )
Filter accuracy:2~15μm
Working pressure:0.1~0.3Mpa
Design pressure:0.4Mpa
Filter element cleaning:Y can be cleaned (compressed air low pressure back flushing)
Motor:4.0kw variable frequency motor
Connection:DN15
Dimension:980×1030×1550(mm)
Weight:355Kg

Applications and Uses:

Fine Chemicals
Bio-pharmaceuticals
Food & Beverage
Energy & Petrochemicals
Environmental wastewater

Dynamic membrane filter with excellent filtration.

Operating mode:

A membrane stack, mounted on and rotated by a hollow shaft, inside a pressure vessel (called module)
Filtration is performed from outside to inside through the membrane layer coating on the filter discs; the filtrate/permeate is collected inside the filter discs and discharged via hollow shaft
Fixed baffles inside the pressure vessel generate turbulences
Modular design,Easy to enlarge or decrease
Automatic back-flushing

Modular Dynamic membrane Fine Filter System Solutions

Suitable for liquid filtration of highly suspended impurities, capable of processing high-concentration suspended liquids
Dynamic membrane can achieve higher permeation flux
Compared with tubular membrane, the flux rate is higher
Efficiently concentrate fewer residues, saving costs for subsequent evaporation or drying
Since the clogged layer is cleaned more effectively, the operating pressure is reduced (there is no pressure drop in the tubular membrane)
Compared with traditional cross-flow filters, energy consumption is reduced by 80% and energy costs are low
Choose the right membrane pore size to get the best filtration effect
High mechanical stability
Compact and flexible modular design, easy to expand, easy to check and maintain
The dynamic membrane adopts back-flushing design to effectively extend the service life of the filter membrane
System integration skid-mounted design
